Automatic Paper Bag Making Machine , Industrial Machines for Making Paper Bags

Product Categories
Tecon Package Machinery Limited
Contact Now

Automatic Paper Bag Making Machine , Industrial Machines for Making Paper Bags

  • 1
  • 2

Brand Name : Tecon

Model Number : HD4916BD

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 16pcs per year

Delivery Time : 3 months after received your payment

Packaging Details : Wooden case

Total Weight : 34T

Main drive motor : 35kw

Size : 23.5m×2.3m×1.8m( L×W×H)

Valve Sheet Length : 100mm-300mm

Valve Sheet Width : 120mm-340mm

Bag Length : 390～1020 mm

Contact Now

Automatic Multi-layer Valve Paper Bag Making Machine with Solenoid Valve

  • Features of our full-automatic paper bag production line
  1. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
  2. Flat & glued bottom with filling valve;
  3. Different types for cement, chemicals, foods, tea, etc.
  4. 4-color automatic printing
  5. 2~4 paper layers, with one extra PE/PP film available
  6. 35~50 million bags/year
  7. Full technical service for installation, training and maintenance
  8. Full solution for factory construction and materials purchase.
  • Technical parameters of our production line

HD4916BD Bottomer Machine

(bottomer with strength sheet pasting unit)

Operating condition

Working hour

22 hours/day

Design temperature

0~40℃

Design humidity

MAX. 95%

Number required

1 unit

Model name

HD4916BD

Performance

Model

HD4916BD

Speed

MAX 80 bags/min

Tube Width

380～620 mm

Bottom Width

80～160 mm

Valve Sheet Length *Width

(100-300)﹡(120-340)adjustable

Bag Length

390～1020 mm

Bottom Center Distance

290～860 mm

Number of ply

2~4paper+1 PP/PE

Strength sheet unit

YES

Strength sheet length *width

(270～520)﹡(80～160)

Main Drive Motor

35KW

Machine size

23.5﹡2.3﹡1.8(M)

Machine weight

N34(T)

Composing of the production line

HD4916BD Bottomer Machine

(bottomer with strength sheet pasting unit)

Name

Quantity

High speed feeder machine

1

Perforation of the exhaust outlet unit

1

Tube opening unit

1

Automatic gluing machine

1

Scrip sealing machine

1

Bag bottom turning unit

1

Counting and delivery line

1

Automatic delivering out unit

1

Piling up platform

1

Electric control unit

1 (German Siemens)

Vacuum-pump

1 (German Rietschele)

Bearing

(Janpan NSK)

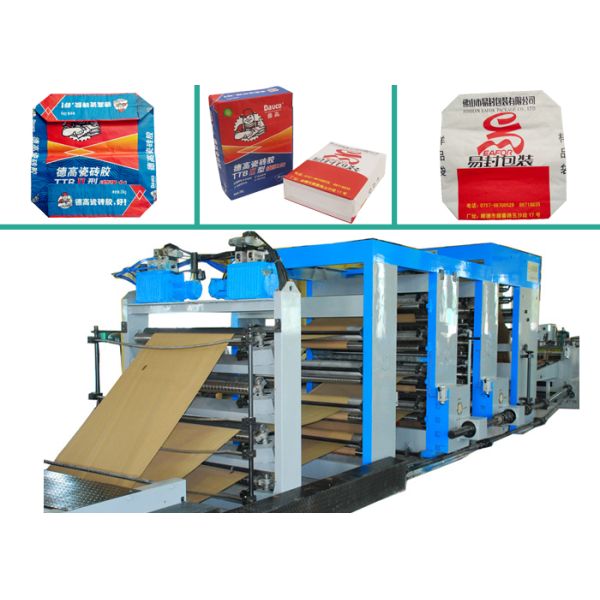

  • Our Machine

Automatic Paper Bag Making Machine , Industrial Machines for Making Paper Bags
