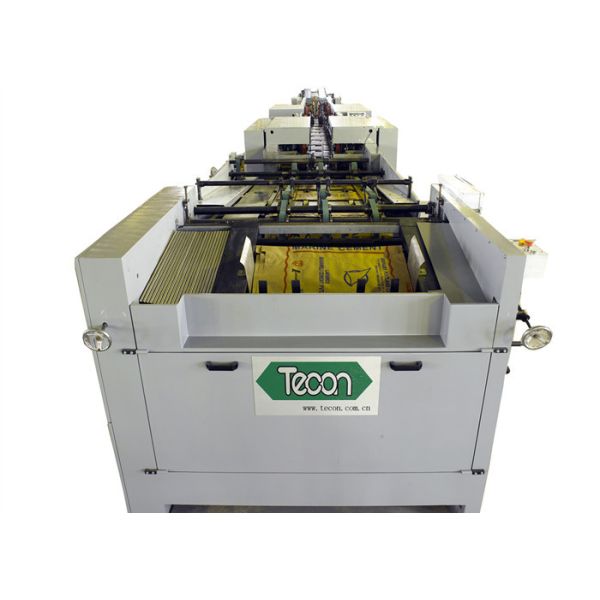

Full Automatic Paper Bag Making Machine High-speed with Vacuum Pump Motor

Product Categories

Tecon Package Machinery Limited

Contact Now

Name: Full Automatic Paper Bag Making Machine Highspeed with Vacuum Pump Motor
Brand: Tecon
Price: 1 USD

Brand Name : Tecon

Model Number : HD4913

Certification : CE

Place of Origin : China

MOQ : 1 pcs

Price : negotiation

Supply Ability : 16pcs per year

Delivery Time : 3 months after received your payment

Packaging Details : Wooden case

Colour : White

Size : 21.3m×2.3m×1.8m( L×W×H)

Design temperature : 0~40℃

Weight : 22.7T

Air consumption : Air consumption

Main drive motor : 33kw

Contact Now

Automatic and High-speed Paper Bag Making Machine with Vacuum Pump Motor

4-color automatic printing
Flat & glued bottom with filling valve;
Different types for cement, chemicals, foods, tea, etc.
2~4 paper layers, with one extra PE/PP film available
35~50 million bags/year
Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system, Siemens electrical system
Full technical service for installation, training and maintenance
Full solution for factory construction and materials purchase.

HD4913 Bottomer Machine

Operating condition

Performance

Speed	80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)
Bag length	520~880mm
Bag width	420~600 mm
Bottom width	90~130mm
Bottom open width	200~380mm
Distance between bottom centers	420~780mm
Valve sheet length	100~250mm
Valve sheet width	120~170mm
Main drive motor	33kw
Total weight	22.7T
Size of whole set	21.3m×2.3.m×1.8m ( L×W×H)
Valve sheet reel diameter	Max.1,300mm

Composing of the production line

HD4913 Bottomer Machine

Name	Quantity
High speed feeder machine	1
Perforation machine	1
Tube opening unit	1
Automatic gluing machine	1
Scrip sealing machine	1
Bag bottom turning unit	1
Counting and delivery line	1
Automatic delivering out unit	1
Piling up platform	1
Electric control unit	1 (Schneider, German)
Vacuum-pump	1 (Schneider, German)
